VM-PET 10DR

Introduction

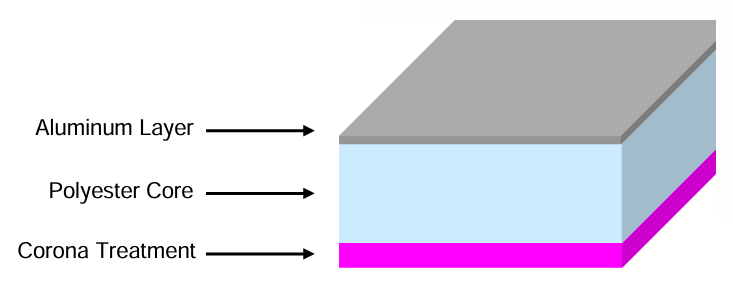

One side vacuum deposited Aluminum and, one side corona treatment polyester film, widely used in flexible packaging applications. VM-PET 10DR designed for dry lamination for those requiring excellent metal bonding, glossiness and barrier properties.

Features

  • High gloss on Metalized Surface

  • Stable barrier

  • Less pinhole, Non-craze metal surface

  • Heat durability

Application

  • Dry foods, Frozen foods

  • Liquid content (except boiling)

  • Paper Lamination

Typical Structures

  • OPP/Ink/ VM-PET 10DR / Sealant

  • PET/Ink/ VM-PET 10DR / Sealant

  • ONY/Ink/ VM-PET 10DR / Sealant

  • PET/Ink/ VM-PET 10DR / ONY / Sealant

Typical Properties

Properties


Unit

Typical Values

Measurement method

Thickness


micron

12


Nominal Yield

m2/kg

59.5

Tensile strength @ Break

MD
TD

MPa

240
245

ASTM D882
JIS C2318

Young's
Modulus

MD
TD

MPa

4400
4400

ASTM D882
JIS C2318

Elongation @ Break

MD
TD

%

140
130

ASTM D882
JIS C2318

Dimensional Stability
(150°C for 30 minutes)

MD
TD

%

1.4
-0.1

ASTM D1204
JIS C2151

COF
(Metal / Film)

Static
Dynamic

-

0.5
0.4

ASTM D1894
JIS K7125

Wetting
Tension

Metallized
Corona

Dyne/cm

>52
>50

ASTM D2578
JIS K6768

Optical Density


-

2.2

Macbeth

O2TR @23° C,
0% RH

Typical
Spec

cc / m2 / day

0.7

ASTM D3985
JIS K7126-2

WVTR @38° C,
100% RH

Typical
Spec

g / m2 / day

0.8

ASTM F1249
JIS K7129B

Gloss

Film
Metalized

%
%

600
800

ASTM 2457 - 97
JIS K6768

Attention

Toray has used its discretion, best judgment, and efforts in collecting and preparing the information provided herein, but such information is provided without any warranty of any kind, either expressed or implied, including, but not limited to, the warranties of completeness, accuracy, fitness for a particular purpose, or non-infringement. Changes can be periodically added to the information.
